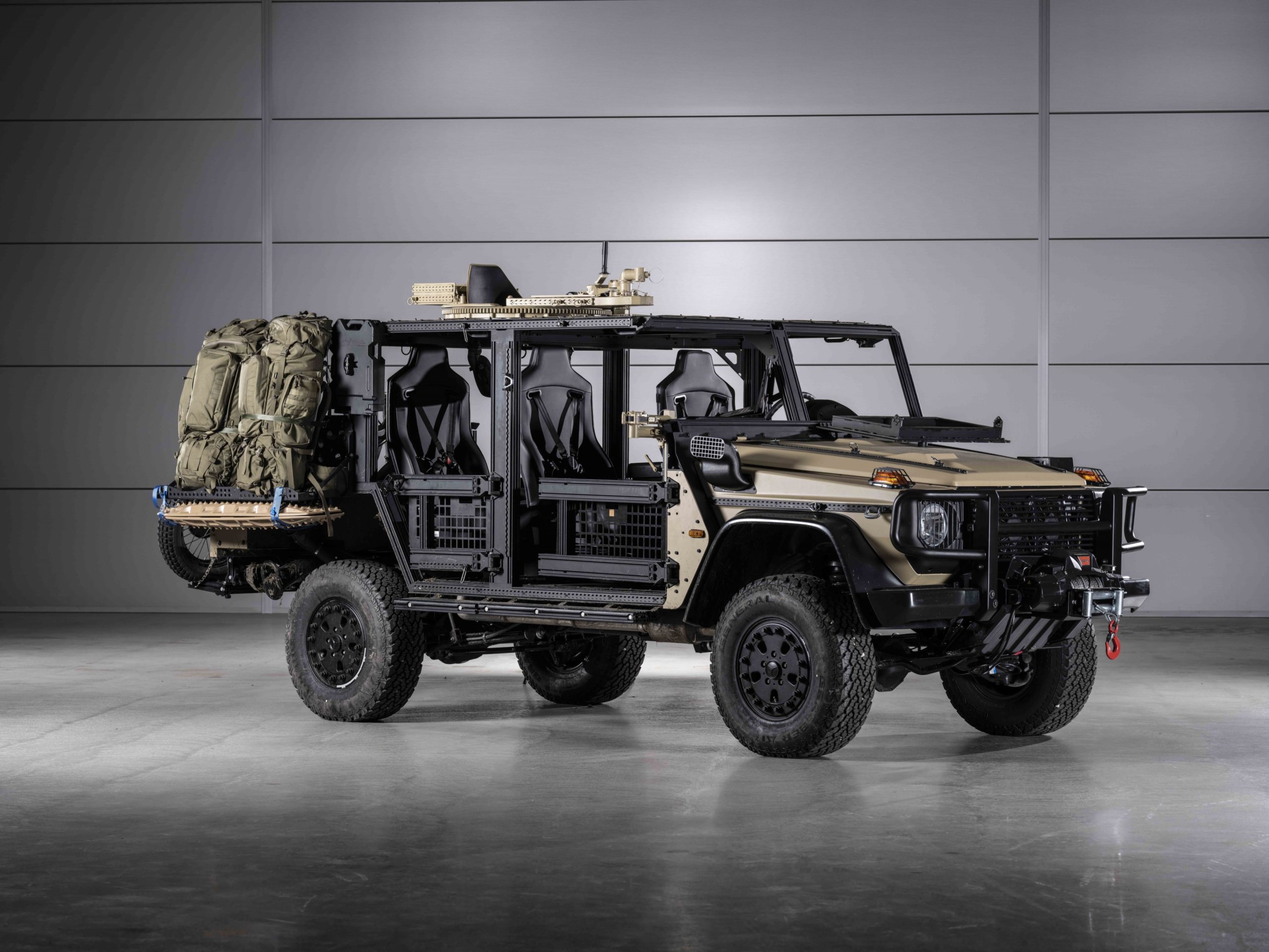

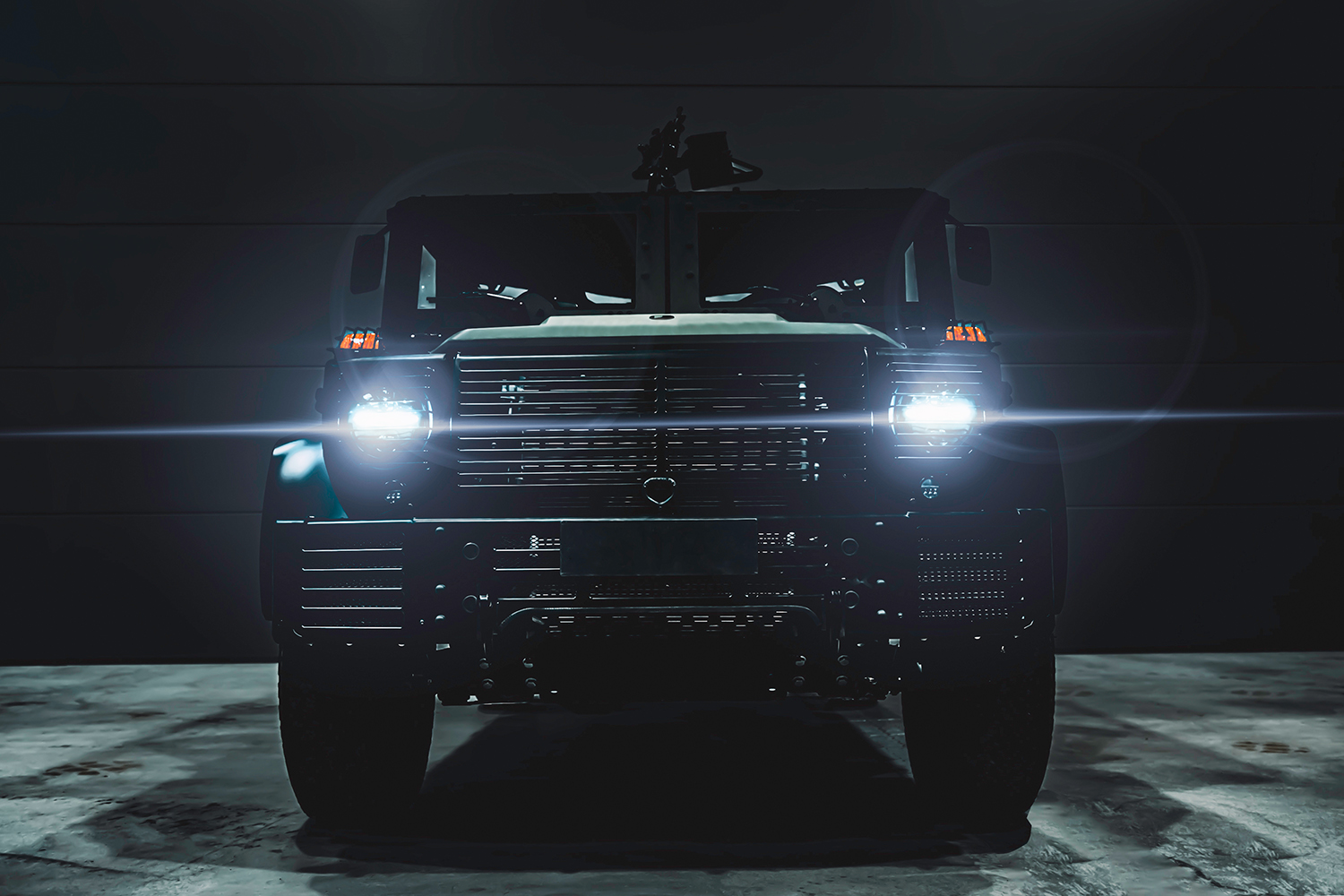

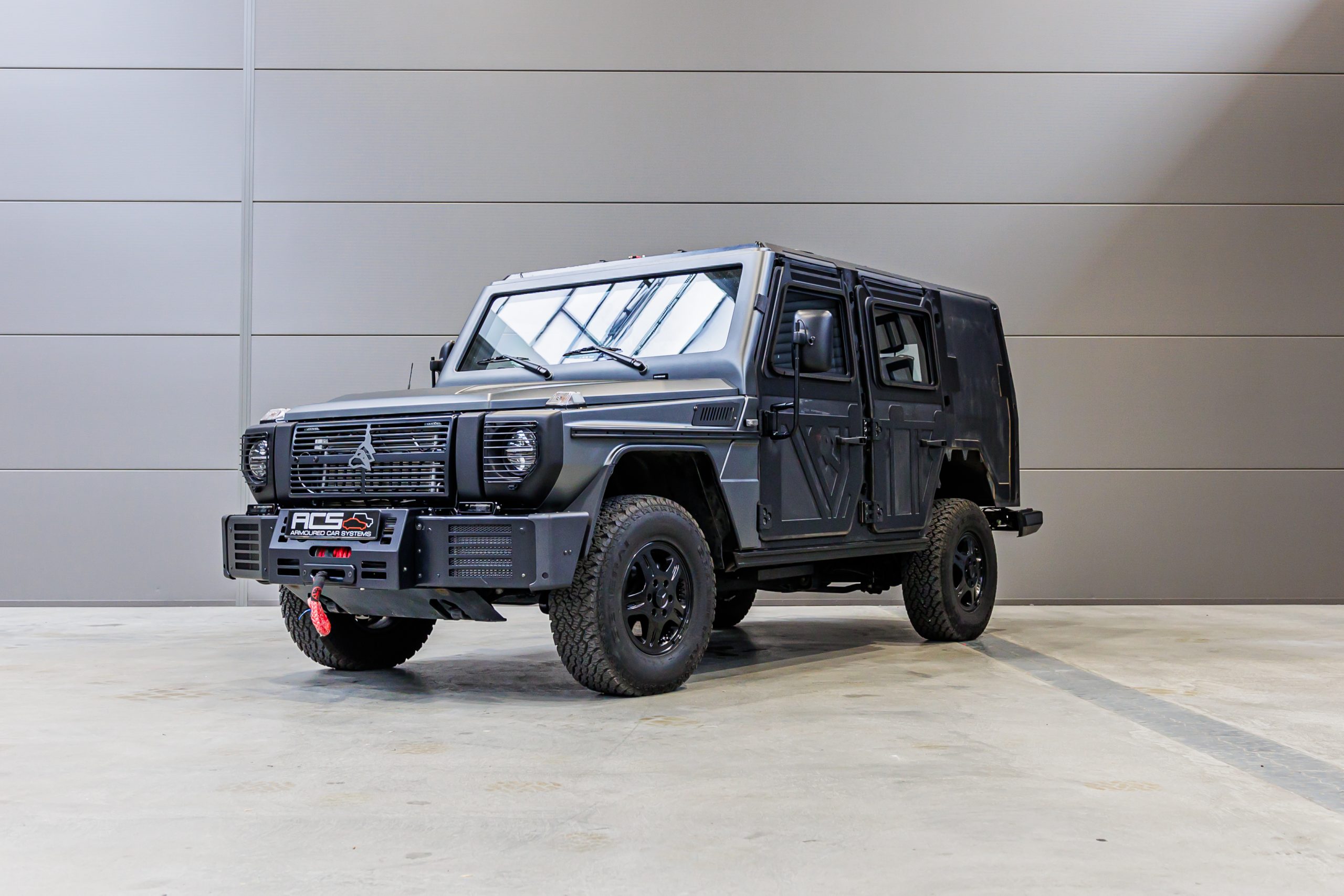

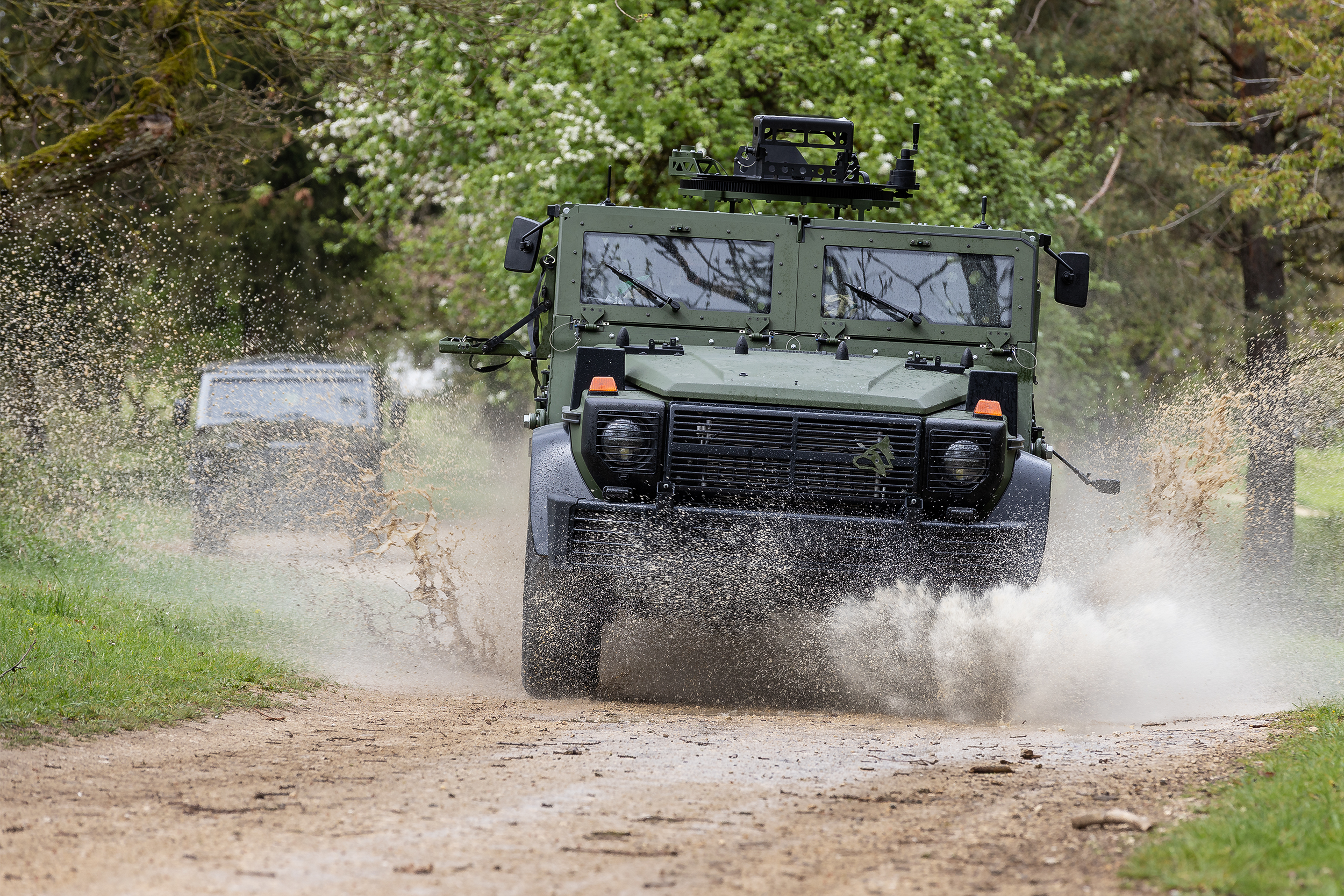

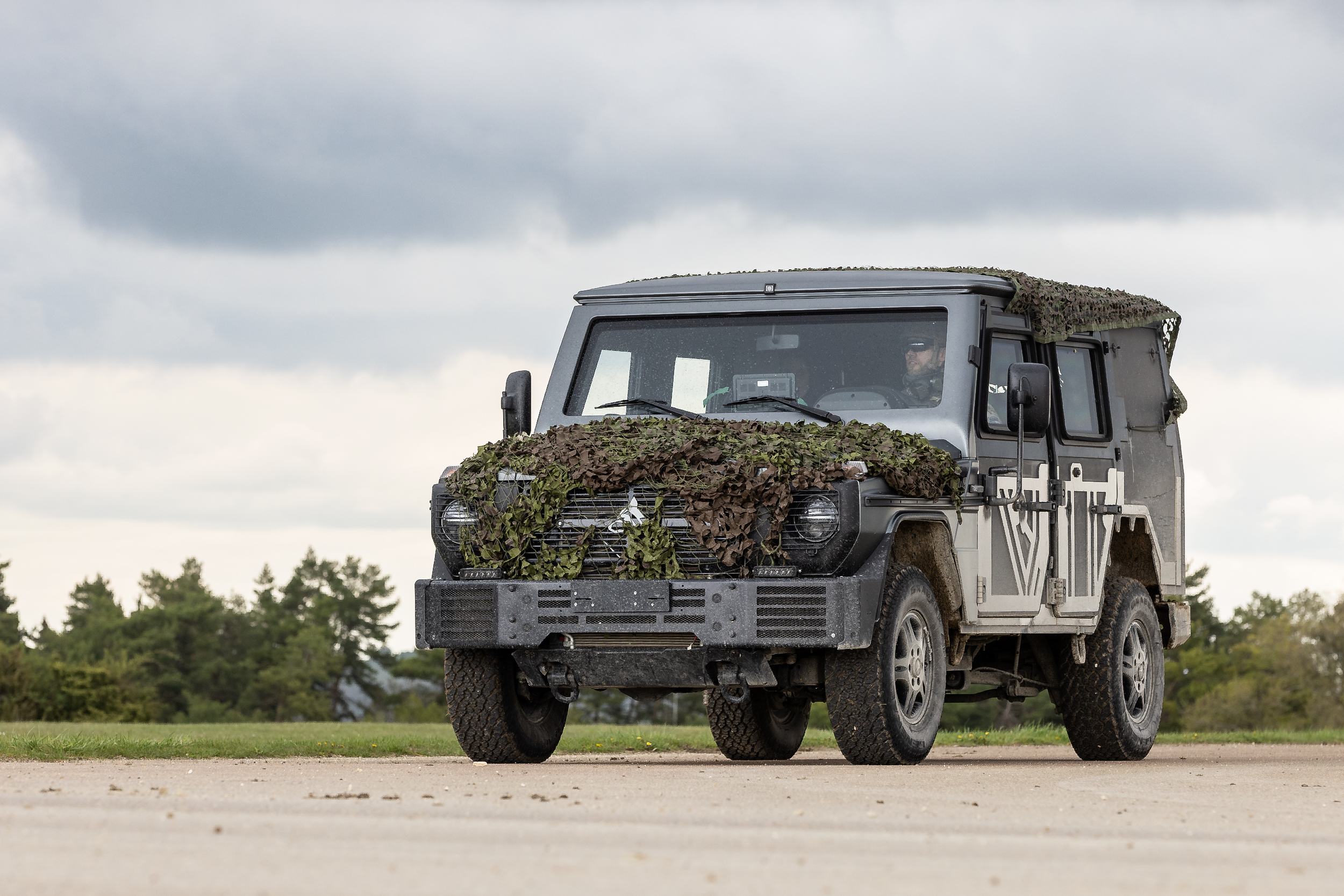

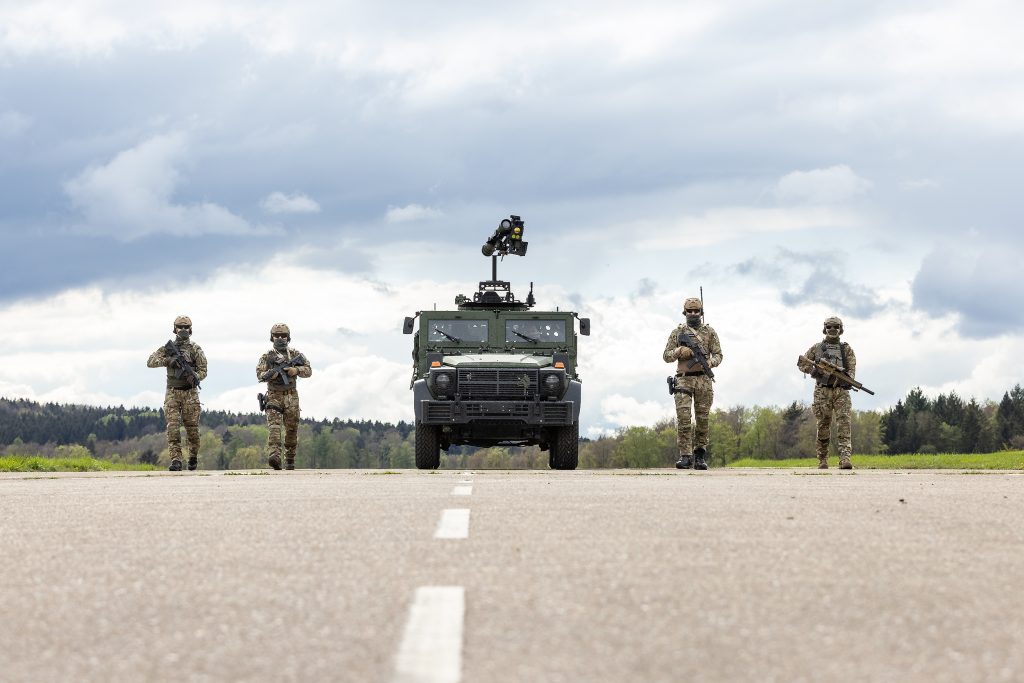

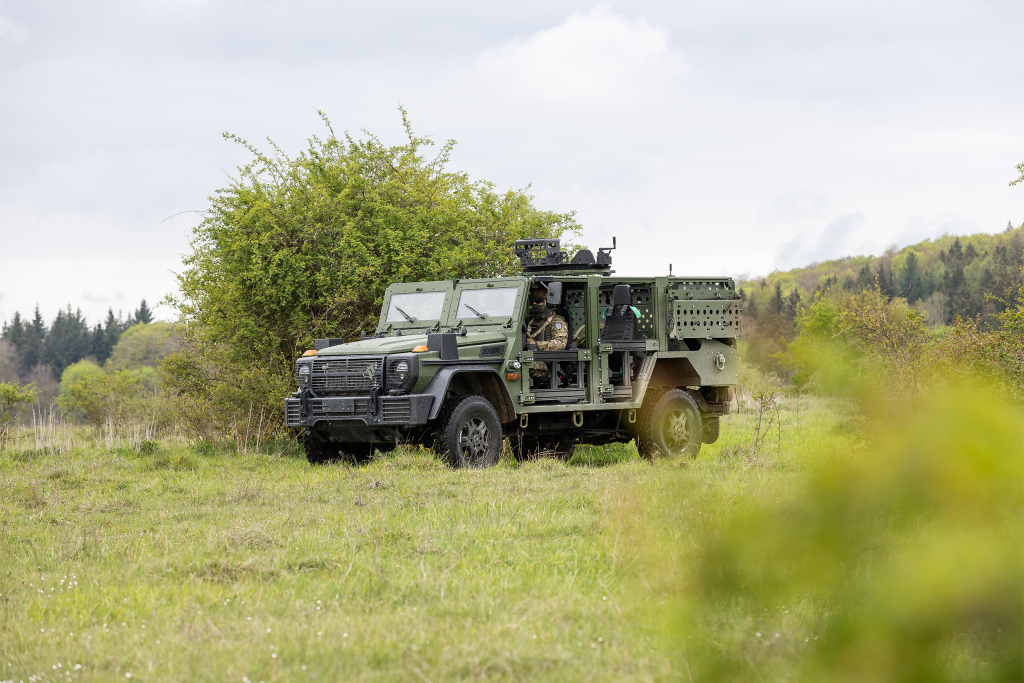

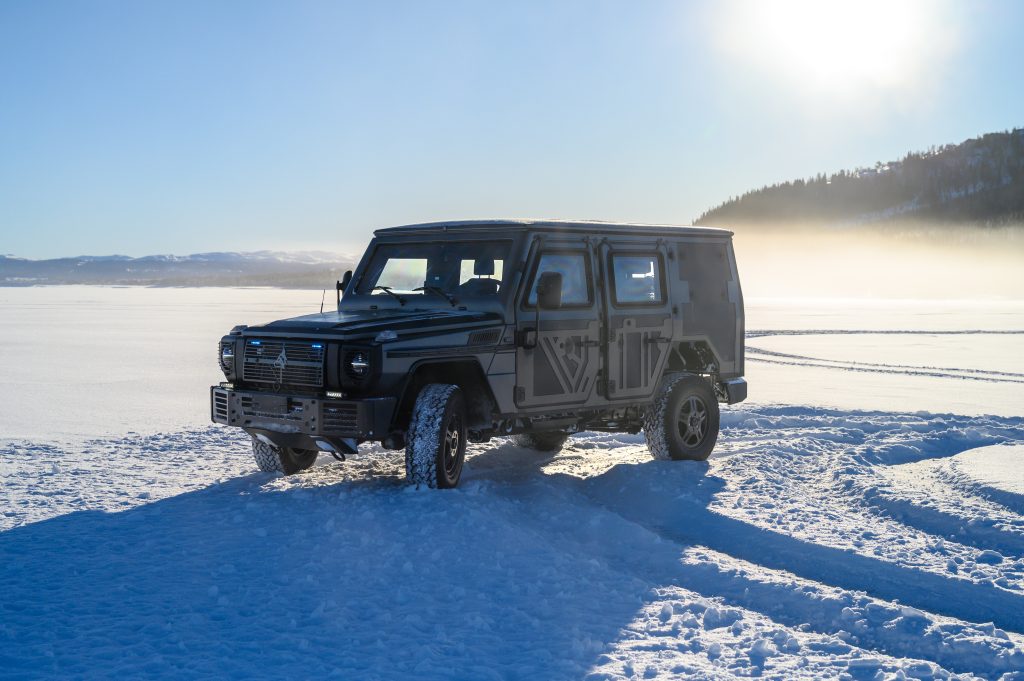

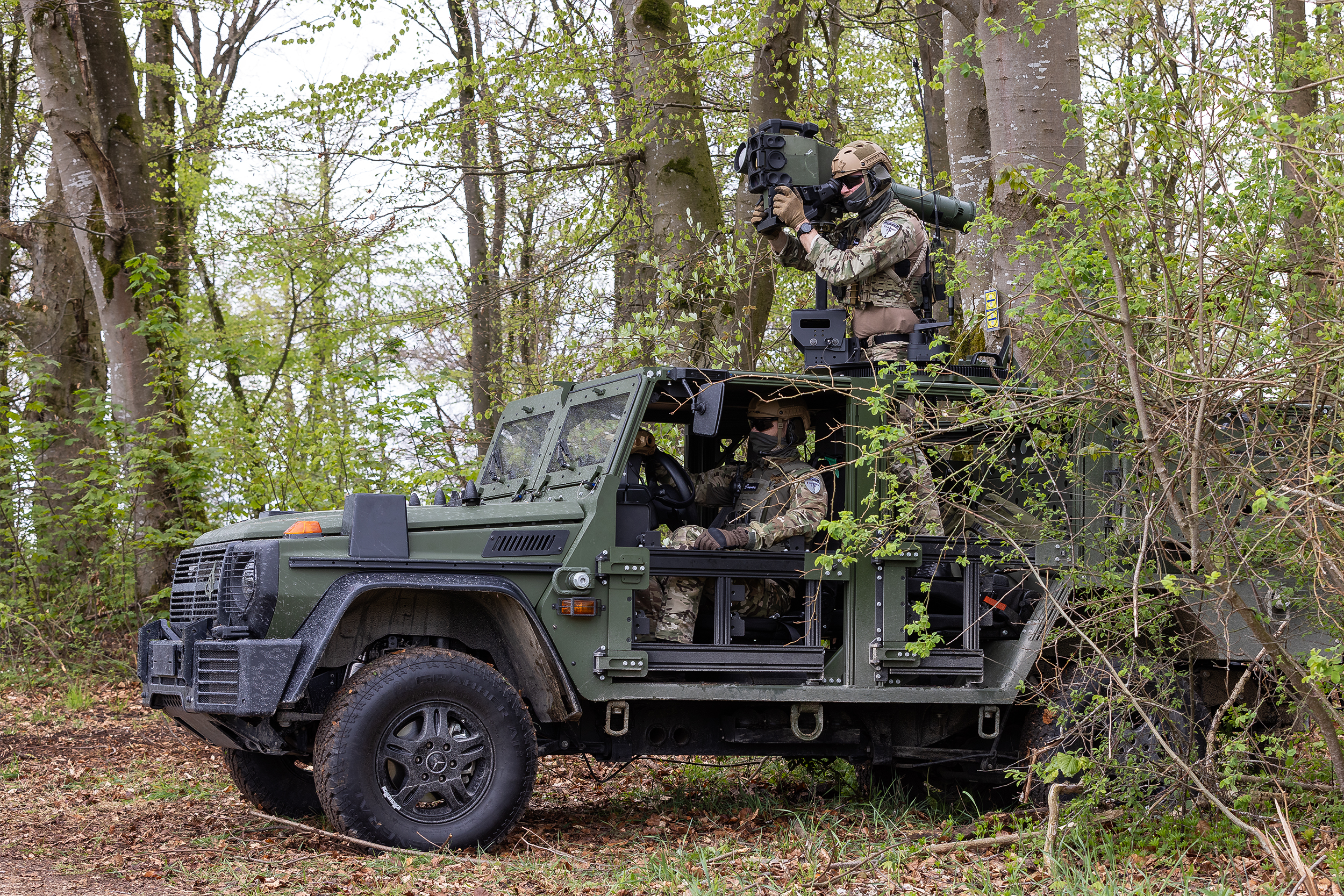

ENOK 4.8 AB

4.8

  • Extreme modular body – One platform for any mission kit
  • Solid design and modular protection – combat ready
  • Mainly screwed – Easy and low-cost maintenance, also in the field
  • Reliable powertrain and chassis – low price, scalable, sustainable
Engine power 185 kW / 600 Nm
Maximum speed 120 km/h
Maximum climbing 60%
Wheelbase 2,850 mm
L x W x H: 4.700 x 1.900 x 1.850 (width without mirror)
Turning circle 14 m (below 10 m with rear axle stearing)
Armouring level Up to STANAG 1
Seating capacity 2-8 people
Payload Up to 2.200 kg
Contact person
References

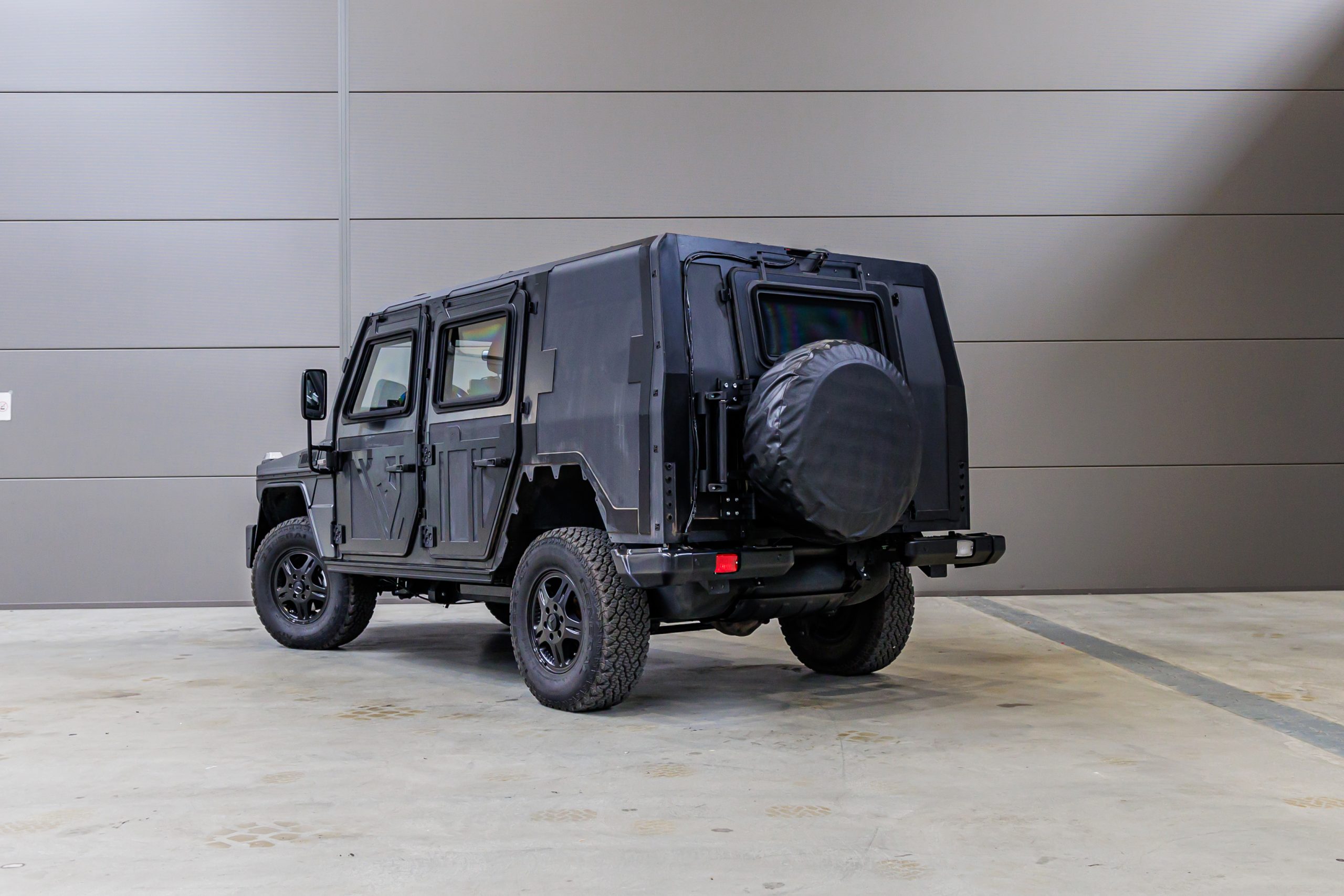

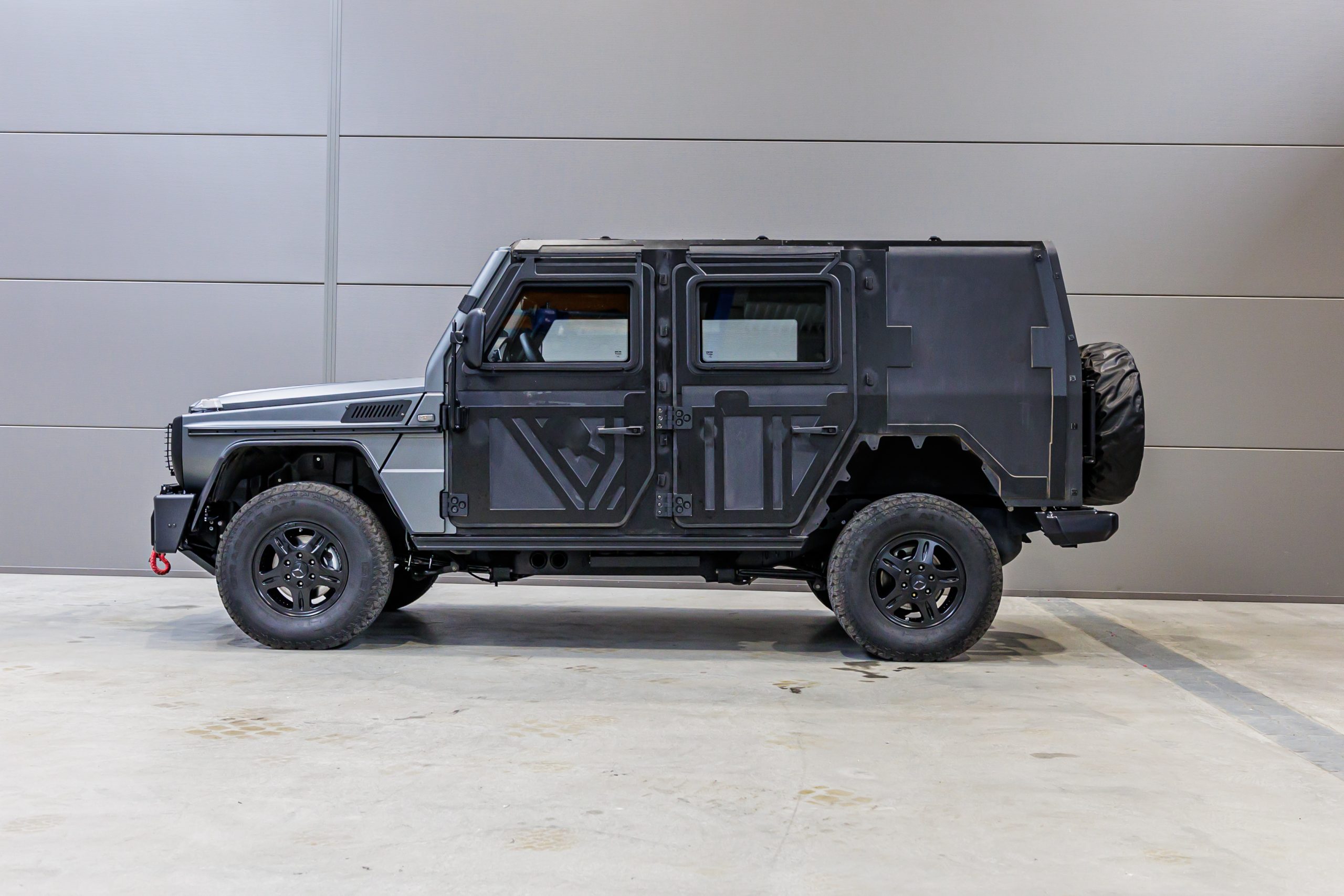

ENOK 5.4

5.4

ENOK LAPV 5.4
  • “ENOK LAPV 5.4” is a lightweight, armoured patrol vehicle (LAPV: Light Armoured Patrol Vehicle). It is set up on the military chassis of the G-Class.
  • Integrated ballistic protection according to STANAG 4569 level 2 (handguns and machine guns), optionally with mine protection level 1.
  • Two variants are available: A four-door with a rear body and a five-door with a fully armoured cabin.
Engine power 135 kW (at 3,800 rpm)
Maximum speed 120 km/h
Max. vertical axle displacement 60%
Wheelbase 2,850 mm
L x W x H: 4.709 x 2064 x 2060 (width without mirror)
Turning circle 14 m
Armouring level Up to STANAG 2
Seating capacity 4 people
Payload Up to 1,000 kg
Contact person
References

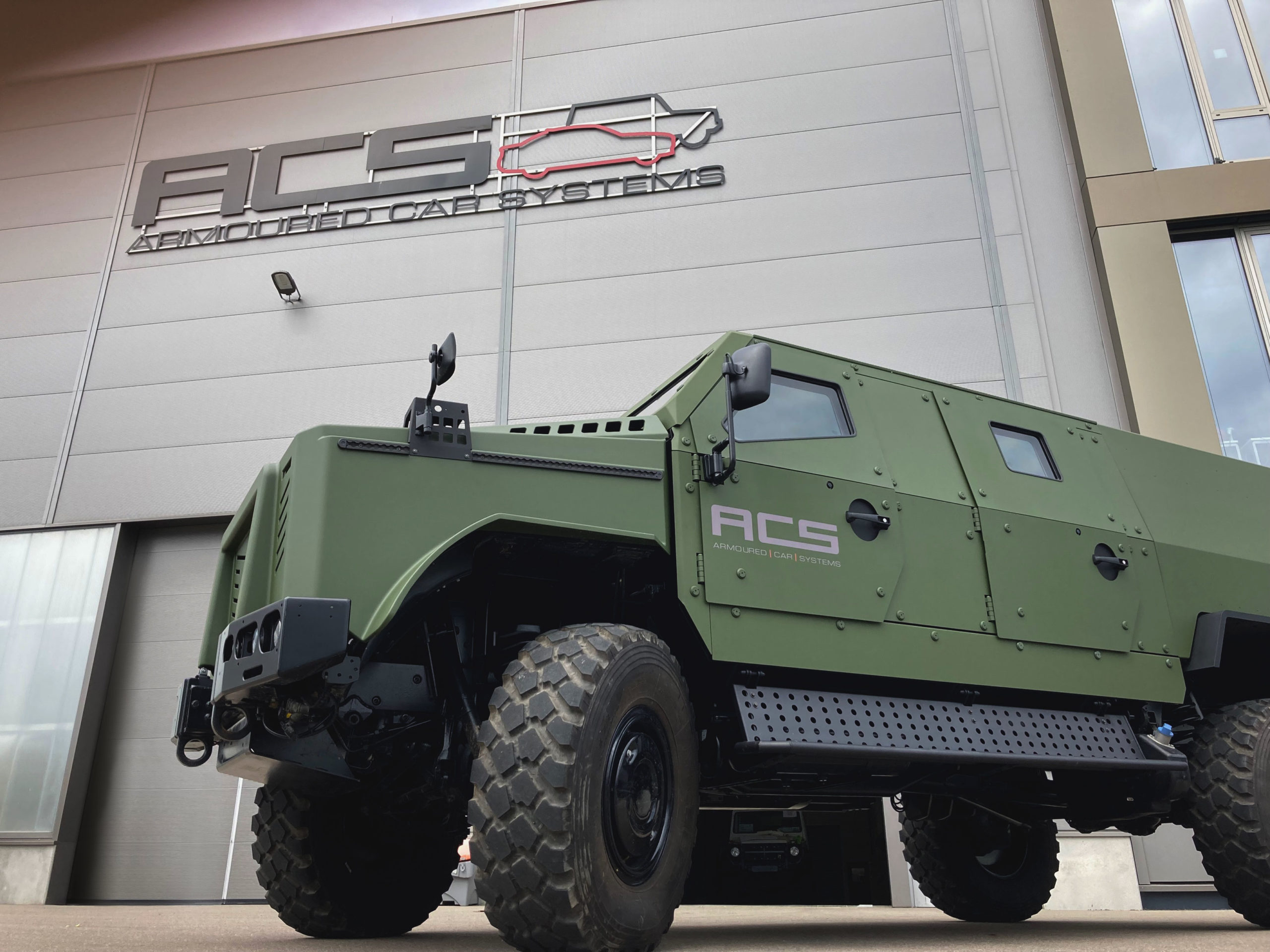

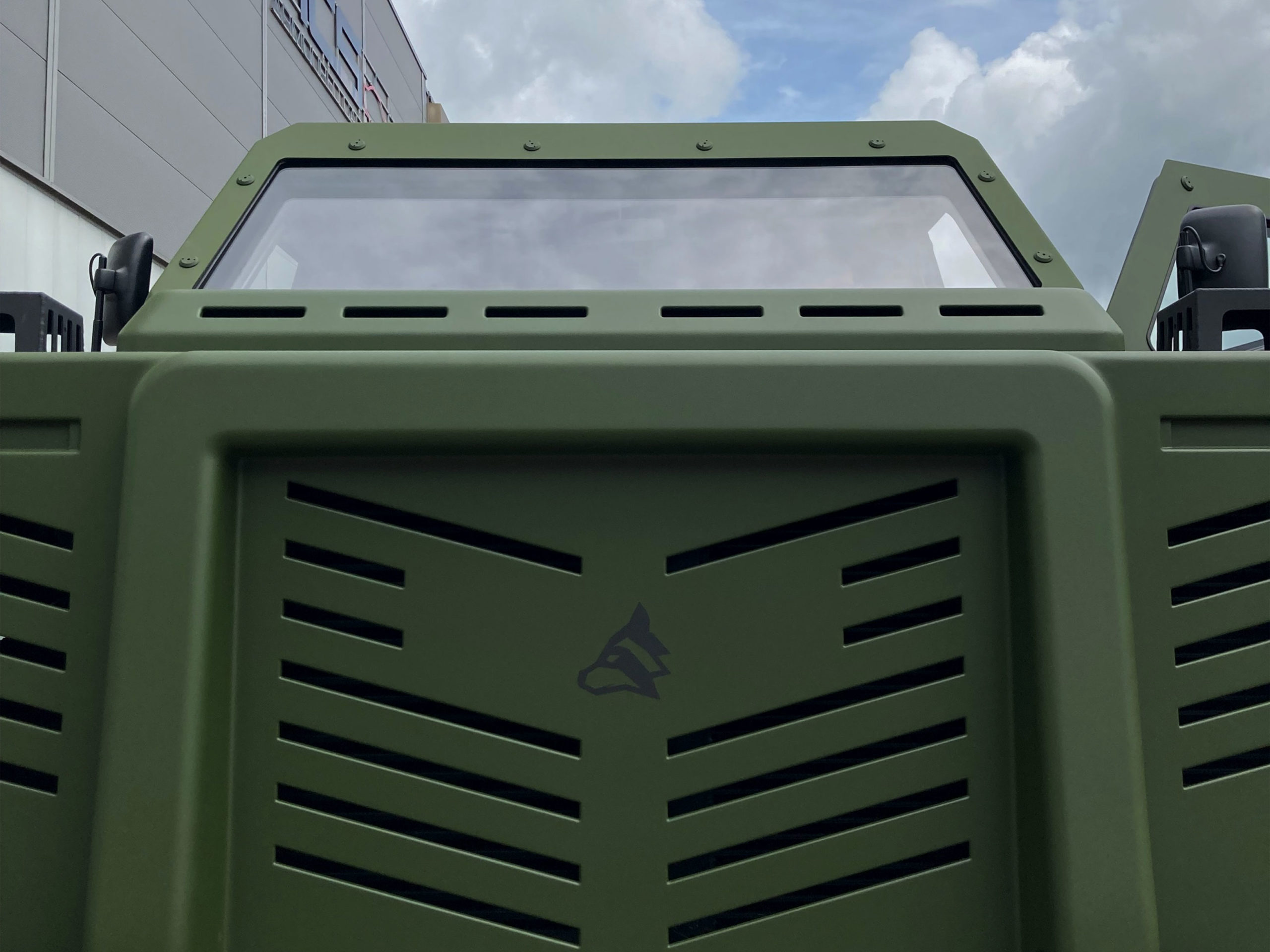

ENOK 6.2, military

6.2

ACS Logo
  • “ENOK LAPV 6.2” is a lightweight, armoured patrol vehicle (LAPV: Light Armoured Patrol Vehicle). It is set up on the military chassis of the G-Class.
  • The suspension uses vertically adjustable suspension struts (used by rally trucks).
  • The axles have been upgraded with countershaft transmissions to increase the ground clearance to 45 centimetres.
  • The use of beadlock rims with external screws prevent the tires from falling off the rim when the air pressure is extremely low.
Engine power 135 kW (at 3,800 rpm)
Maximum speed 120 km/h
Max. vertical axle displacement 60%
Wheelbase 2,850 mm
L x W x H: 4.968 x 2120 x 2.312 (width without mirror)
Turning circle 14 m
Armouring level Up to STANAG 2
Seating capacity 4 people (optionally up to 6 people on a temporary basis)
Payload Up to 1,000 kg
Contact person
References

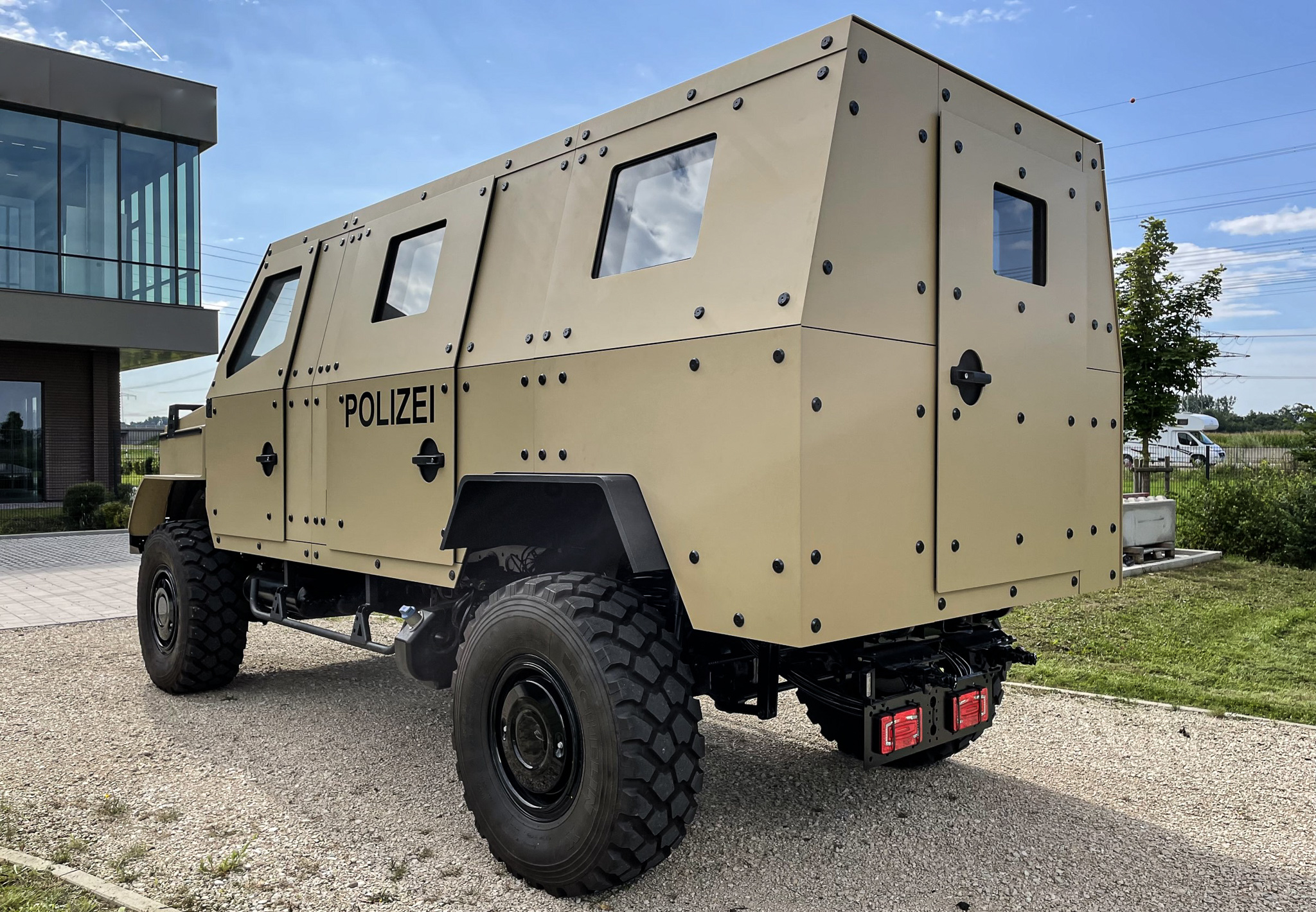

ENOK 6.2, police

6.2

ENOK LAPV 6.2 Polizei
  • “ENOK LAPV 6.2” is a lightweight, armoured patrol vehicle (LAPV: Light Armoured Patrol Vehicle). It is set up on the military chassis of the G-Class.
  • The suspension uses vertically adjustable suspension struts (used by rally trucks).
  • The axles have been upgraded with countershaft transmissions to increase the ground clearance to 45 centimetres.
  • The use of beadlock rims with external screws prevent the tires from falling off the rim when the air pressure is extremely low.
Engine power 135 kW (at 3,800 rpm)
Maximum speed 120 km/h
Max. vertical axle displacement 60%
Wheelbase 2,850 mm
L x W x H: 4.968 x 2120 x 2.312 (width without mirror)
Turning circle 14 m
Armouring level Up to STANAG 2
Seating capacity 4 people (optionally up to 6 people on a temporary basis)
Payload Up to 1,000 kg
Contact person
References

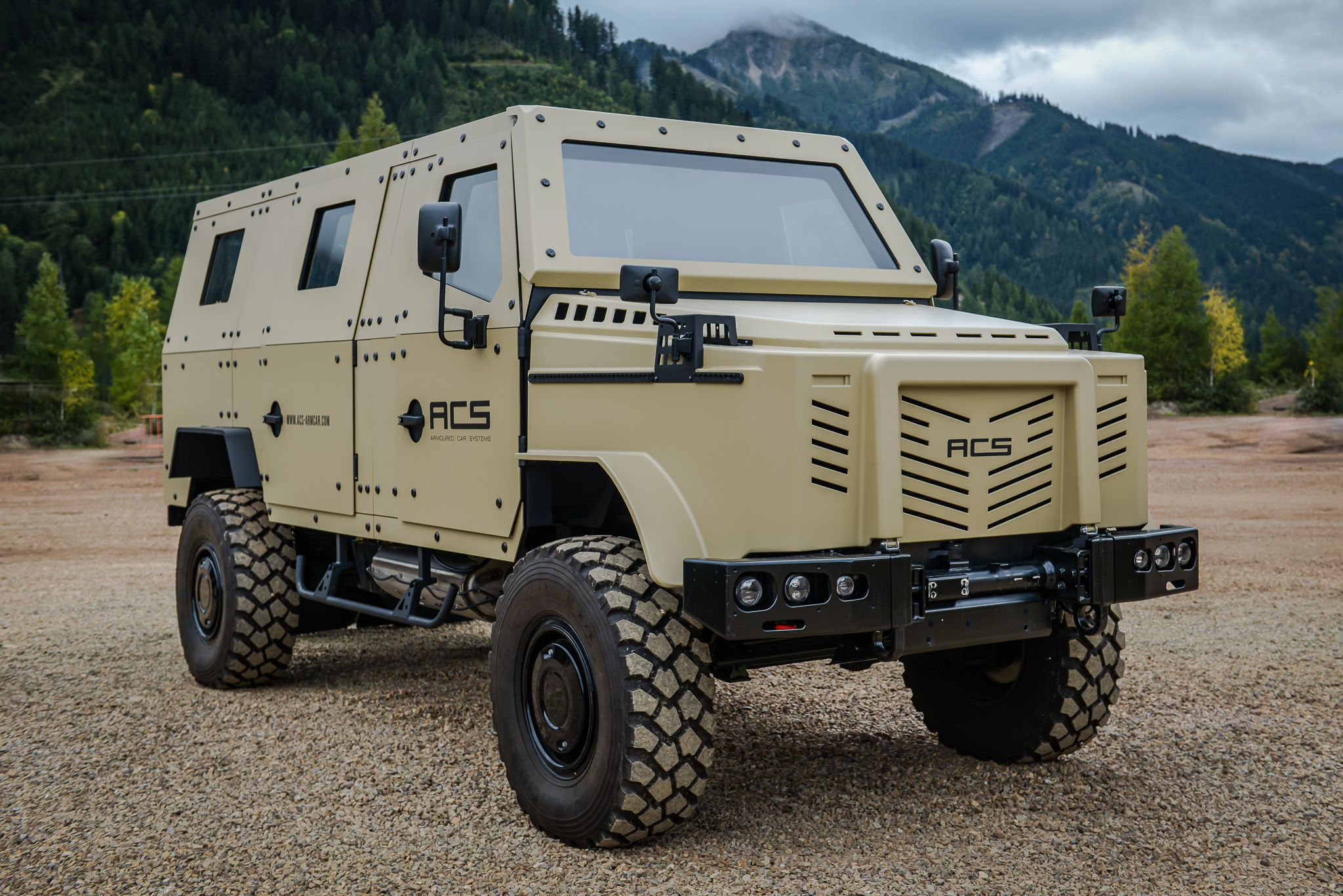

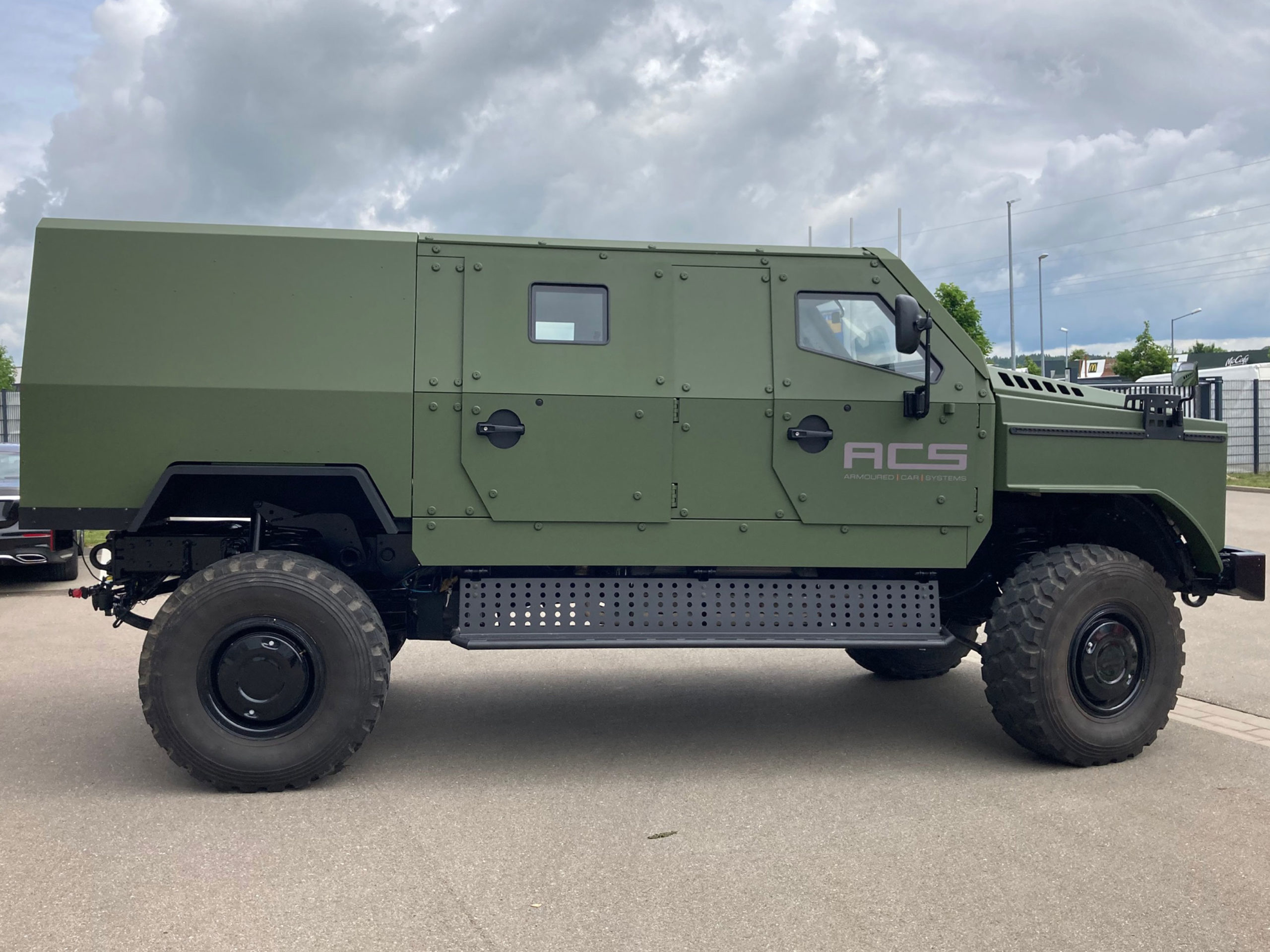

ENOK 7.5

7.5

ENOK LAPV 7.5
  • “ENOK LAPV 7.5” is a lightweight, armoured patrol vehicle (LAPV: Light Armoured Patrol Vehicle).
  • The engine, transmission, and cockpit come from the Mercedes Benz commercial vehicle series.
  • The vehicle is a study vehicle for “high agility” and “high modularity” up to 7.5 tons.
  • The portal axles have been upgraded with countershaft transmissions to increase the ground clearance to 45 centimetres.
Engine power 210 kW (at 3,800 rpm)
Maximum speed 120 km/h
Max. vertical axle displacement 100%
Wheelbase 3,470 mm
L x W x H: 5.115 x 2100 x 2.480 (width without mirror)
Turning circle 14 m
Armouring level Up to STANAG 4569 level 3 (without 7.62 mm x 51 AP (WC))
Seating capacity 4 people (optionally up to 10 people)
Payload Up to 1,500 kg
Contact person
References
